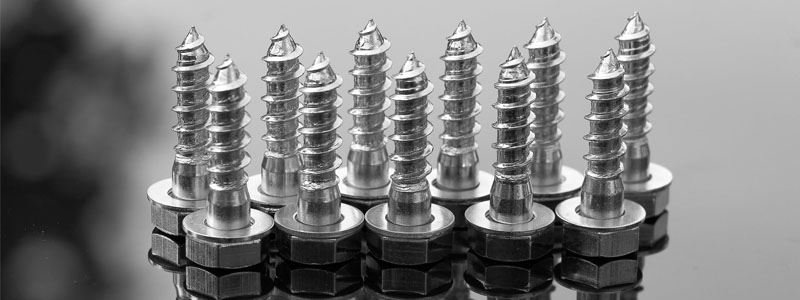

Timex Metals is known as one of the biggest Screw Manufacturer, Supplier and Exporter in India. Timex Metals is the largest screw manufacturer, supplier, and exporter. The fastener family includes screws. Stainless steel screws, which contain chromium and molybdenum to help them survive in severe environments, are commonly used. Screws are corrosion-resistant and resistant to stress corrosion. It's a bolt-like fastener that's used to secure materials together and prevent pull-outs produced by pressure. At a decent price, we have a huge selection of Screws for a variety of fittings and applications. A head on one end of one side of a screw allows it to be twisted by a tool, making it easier to assemble or disassemble secured items.
Our company is one of the largest Manufacturers & Suppliers of Screws in India. We manufacture Screws in different grades to national and international requirements. Chemical processing, aerospace, sugar industries, food processing, pulp and paper plants, desalination plants, and other sectors use it because it has a coating. All screws are made to our clients' specifications. We also Panel Screws, Wing Screws, Square Screws, and other types of screws. We are Largest Manufacturer and Supplier of Nuts in India
Screw | Specification |
Standard of Screw | DIN 84, DIN 85, DIN 912, DIN 916, DIN 931, DIN 933, DIN 960, DIN 961, DIN 963, DIN 964, DIN 965, DIN 966, DIN 6912, DIN 6921, ASME B18.2.1, ASME B18.3, ASME B18.6.2, ASME B18.6.3, ASME B18.6.4, ASME B18.7 |
Screw Length | 3 mm to 200 mm |
Screw Size | Imperial Size: 3/8 to 8″, Metric Size: M10 to M100 |
Form of Screw | Hex, Threading, Square, Round as per Gauge Etc. |
Type Of Screw | Hex Head Screw, Eye Screw, Dome Screw, Wing Screw, T Screw, Panel Screw, Lock Screw, Coupling Screw, Square Screw, Acorn Screw etc. |
Screw Chemical Composition Table, Screw Chemical Chart, Chemical Chart of Screw, Steel Screw Chemical Composition Chart
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
SS 316 Screws | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
SS 316L Screws | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
SS 316H Screws | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
Grade | Tensile Str (MPa) min |
Yield Str 0.2% Proof (MPa) min |
Elong (% in 50mm) min |
Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
SS 316 Screws | 515 | 205 | 40 | 95 | 217 |
SS 316L Screws | 485 | 170 | 40 | 95 | 217 |
SS 316H Screws | 515 | 205 | 40 | 95 | 217 |
Screw weight, Screw weight chart, weight chart for Screw, weight chart of Screw, Screw manufacturers weight chart, Screw weight chart table
NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
---|---|---|---|---|---|---|---|---|
D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Timex Metals manufactures Screw with precision and latest equipments. New technologically advanced manufacturing equipments helps Timex Metals in processing and manufacturing the best quality of Screw. With the help of newly found technologically advance equipment we are able to process Screw and supply containers of Screw Fasteners every month to different clients around the globe.
Fasteners are used in various industries worldwide. Timex Metals is known internationally for our quality of Fasteners that are used in different industries and applications.
Our Fasteners are impeccable in quality and that is why are loved widely by our large clientele. Fasteners produced by Timex Metals are used in various different projects worldwide. We have clients with regular demand for Fasteners in 6 different countries and we export Fasteners to additional 50+ Countries. Send us your inquiries via email – info@timexmetals.com or whatsapp us your requirements.
