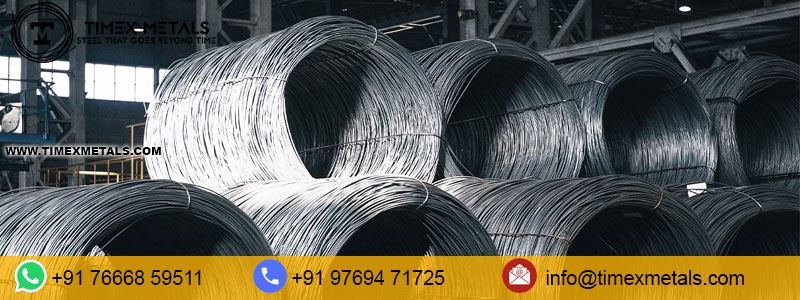

Timex Metals is a market leading Stainless Steel Wire Rods Manufacturers in India. Our wire rods range from 5.5 mm – 26 mm (0.0217″ – 1.000″) and are provided in different conditions like Hot Rolled Wire Rods, Annealed Wire Rods and Pickled Wire Rods. Wire Rods are also known as Stainless Steel Wires, SS Wires, SS Wire Rods, Steel Wires manufacturer in India.
Our company is one of the largest Stainless Steel Wire Rods Supplier in India. We produce and manufacture one of the top quality SS Wire Rods in different sizes and grades at our one of its kind manufacturing facility. Stainless Steel Wire Rods Supplier in India ensure that they have a good understanding of customer needs to provide high-quality products that meet the required industry standards. We are acheiving new heights with the help of our inhouse capabilities to produce one of the best quality Nickel Wire Rods.
Wire Rods Manufacturer - Specification
A variety of Stainless Steel Wire Rods specifications are available based on project requirements.
As a Stainless Steel Wire / Wire Rods Manufacturer, we offer a wide range of Stainless Steel Wire / Wire Rods with unique properties
Monel Wire Rods Manufacturer
We will discuss the various chemical compositions of stainless steel wire rod and how to choose the right one for your needs.
AISI ASTM | EN DIN | C % Max | Mn % Max | Si % Max | S % Max | P % Max | Cr % Max | Ni % Max | Mo % Max | Others % |
---|---|---|---|---|---|---|---|---|---|---|
201 | - | 0.15 | 8min | 1.00 | 0.030 | 0.070 | 12min | 0.50min | - | Cu 1-1.5 |
202 | - | 0.15 | 7.5-10 | 1.00 | 0.030 | 0.060 | 17.00-19.00 | 4.00-6.00 | - | - |
302 | 1.4310 | 0.15 | 2.00 | 1.00 | 0.030 | 0.045 | 17.00-1900 | 8.00-10.00 | - | - |
302HQ | 1.4567 | 0.03 | 2.00 | 1.00 | 0.030 | 0.045 | 17.00-19.00 | 9.00-10.00 | - | Cu : 3.00-4.00 |
303 | 1.4305 | 0.15 | 2.00 | 1.00 | 0.15 Min | 0.20 | 17.00-1900 | 8.00-10.00 | - | Cu : 1% max |
303EHS | - | 0.15 | 2.00 | 1.00 | 0.30-0.33 | 0.20 | 17.00-19.00 | 8.00-10.00 | - | Cu : 1% max |
304 | 1.4301 | 0.08 | 2.00 | 1.00 | 0.030 | 0.045 | 18.00-20.00 | 8.00-11.00 | - | - |
304HC | - | 0.05 | 2.00 | 1.00 | 0.030 | 0.045 | 18.00-20.00 | 8.50-9.50 | - | Cu : 2.00-2.50 |
304L | 1.4307 | 0.03 | 2.00 | 1.00 | 0.030 | 0.045 | 18.00-20.00 | 8.00-12.00 | - | - |
308LER | 1.4331 | 0.02 | 1.5-2.0 | 0.50 | 0.020 | 0.025 | 19.00-21.00 | 9.50-11.00 | - | - |
309LER | 1.4332 | 0.03 | 1.5-2.0 | 0.50 | 0.015 | 0.020 | 23.00-25.00 | 12.00-14.00 | - | - |
310 | 1.4841 | 0.25 | 2.00 | 1.50 | 0.030 | 0.045 | 24.00-26.00 | 19.00-22.00 | - | - |
310S | 1.4842 | 0.08 | 2.00 | 1.50 | 0.030 | 0.045 | 24.00-26.00 | 19.00-22.00 | - | - |
316 | 1.4401 | 0.08 | 2.00 | 1.00 | 0.030 | 0.045 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | - |
316L | 1.4404 | 0.03 | 2.00 | 1.00 | 0.030 | 0.045 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | - |
316LER | 1.4430 | 0.02 | 1.5-2.0 | 0.50 | 0.020 | 0.020 | 18.00-20..00 | 12.00-14.00 | 2.00-2.75 | - |
316Ti | 1.4571 | 0.08 | 2.00 | 1.00 | 0.030 | 0.045 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | Ti : Min (5xC%) |
317LN | 1.4438 | 0.03 | 2.00 | 1.00 | 0.030 | 0.045 | 18.00-20.00 | 11.00-15.00 | 3.00-4.00 | N : 0.10-0.22 |
321 | 1.4541 | 0.08 | 2.00 | 1.00 | 0.030 | 0.045 | 17.00-19.00 | 9.00-12.00 | - | Ti : Min (5xC%) |
410 | 1.4006 | 0.15 | 1.00 | 1.00 | 0.030 | 0.040 | 11.50-13.50 | - | - | - |
416 | 1.4005 | 0.15 | 1.25 | 1.00 | 0.15 Min | 0.060 | 12.00-14.00 | - | - | - |
416XM | - | 0.15 | 1.25 | 1.00 | 030-0.33 | 0.060 | 12.00-14.00 | - | - | - |
420 | 1.4021 | 0.15 Min | 1.00 | 1.00 | 0.030 | 0.040 | 12.00-14.00 | - | - | - |
430 | 1.4016 | 0.12 | 1.00 | 1.00 | 0.030 | 0.040 | 16.00-18.00 | - | - | - |
430L | - | 0.03 | 1.00 | 1.00 | 0.030 | 0.040 | 16.00-18.00 | - | - | - |
430F | 1.4104 | 0.12 | 1.25 | 1.00 | 0.15 Min | 0.060 | 16.00-18.00 | - | - | - |
431 | 1.4057 | 0.20 | 1.00 | 1.00 | 0.030 | 0.040 | 15.00-17.00 | 1.25-2.50 | - | - |
The weight of a monel, nickel wire rod can vary depending on the size and thickness of the rod.
Diameter, mm | Weight, kg/m | Cross-section area, mm2 |
---|---|---|
5,5 | 0,187 | 23,8 |
6 | 0,222 | 28,3 |
6,5 | 0,260 | 33,2 |
7 | 0,302 | 38,5 |
8 | 0,395 | 50,3 |
9 | 0,499 | 63,6 |
10 | 0,617 | 78,5 |
11 | 0,746 | 95,0 |
12 | 0,888 | 113,0 |
14 | 1,210 | 154,0 |
AISI | 201 | 202 | 204CU | 302 | 302HQ | 303 | 304 | 304L | 305 | 309 | 309S |
---|---|---|---|---|---|---|---|---|---|---|---|
W. NR. | 1.4372 | 1.4373 | 1.4597 | 1.4310 | 1.4567 | 1.4305 | 1.4301 | 1.4307 | 1.4303 | 1.4828 | 1.4332 |
AISI | 310 | 310S | 314 | 316 | 316L | 316Ti | 317 | 317L | 321 | 409 | |
W. NR. | 1.4841 | 1.4845 | 1.4841 | 1.4401 | 1.4404 | 1.4571 | 1.4438 | 1.4438 | 1.4541 | 1.4512 | |
AISI | 420 | 420 | 420 | 430 | 430F | 431 | 434 | 2205 | 2304 | ||
W. NR. | 1.4021 | 1.4028 | 1.4032 | 1.4016 | 1.4105 | 1.4057 | 1.4113 | 1.4462 | 1.4362 |
Client Project Report
Our Stainless Steel Wire Rods are impeccable in quality and that is why are loved widely by our large clientele. Nickel Wire Rods manufactured by Timex Metals are used in various different projects worldwide. We have clients with regular demand for Nickel Wire Rods in 6 different countries and we export SS Wire Rods to additional 50+ Countries/
Client Project Report of Stainless Steel Wire Rods | |
---|---|
Stainless Steel Wire Rods Supply in Oil Plant | Rajasthan |
All types of ss wire rods supply | Gujarat |
Steel Wire Rods | Pune, Maharashtra |
Stainless Steel 304 Wire Rods Supply | Vijaywada, Hyderabad |
Timex Metals is a the leading Stainless Steel Wire Rods Manufacturer, Supplier & Stockist in India.
Stainless Steel Wire Rods Additional Information:
Top Products
Applications & Uses of Stainless Steel Wire Rods
Timex Metals is one of the only few largest Stainless Steel 304 Wire Rods suppliers in India. We have our sales offices is many different cities of India. We are leading suppliers in top industrial cities and locations that include GIDC in Gujarat state, MIDC areas in Maharashtra state, Peenya Industrial area in Bangalore, New Delhi, Hyderabad and more.
We have a huge client base in Germany, UAE, Italy, France, United Kingdom, Canada, United States, Australia, Netherlands, Mexico, Saudi Arabia, Iran, Oman. We are regularly exporting Stainless Steel Wire Rods to more countries and connecting with new clients in different parts of the world.
